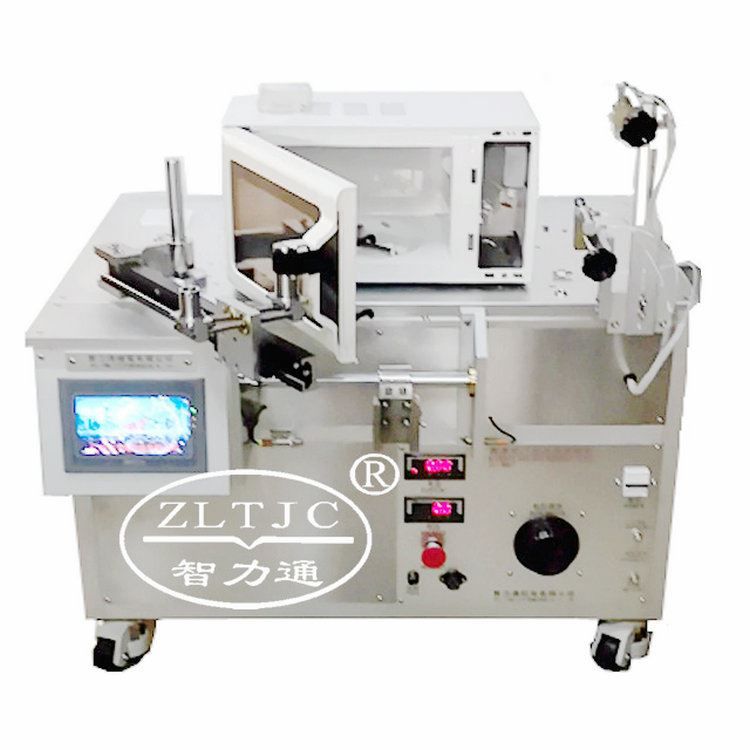

To determine the endurance of the door system, including the hinges, microwave seals and other associated parts, shall be constructed to withstand wear that may be expected in normal use, according to the IEC60335-2-25 clause 18. The door is opened and closed as in normal use. It is opened from the closed position to an angle 10° before fully open . The rate of operation is six cycles per minute.
1. test frame, industrial molding Aluminum, maximum testing angle 155° (open angle of microwave oven door), for horizontal or vertical sample forms,
2. electronic circuit with 20A plug for power below 5000W of the sample, with testing function, judge whether the current work, in the testing process, automatic stop if the sample no electricity work, counter displays test times and warning,
3. electronic predetermining pulse counter, 6-digit, to indicate the number of cycles and to disconnect the machine when reaching the preselected number of cycles. Adapt to different open-door mode of specimen:
Door Opening Mechanism:
three types – Handle (Left open), Push Button (Spring attached inside) & Handle (top open) Hinge will remain always on left side (Left open) & always on bottom side (Top open) Angle limit: 0 to 155 deg.
Testing Voltage: 0-240V, adjustable.
PLC Controller
Compression Air Motion : 5~7kg/cm2 (Air Compressor Provided by customer ) Power Supply: 220V 50Hz, other voltages on request.
